制藥型凍干機技術參數表

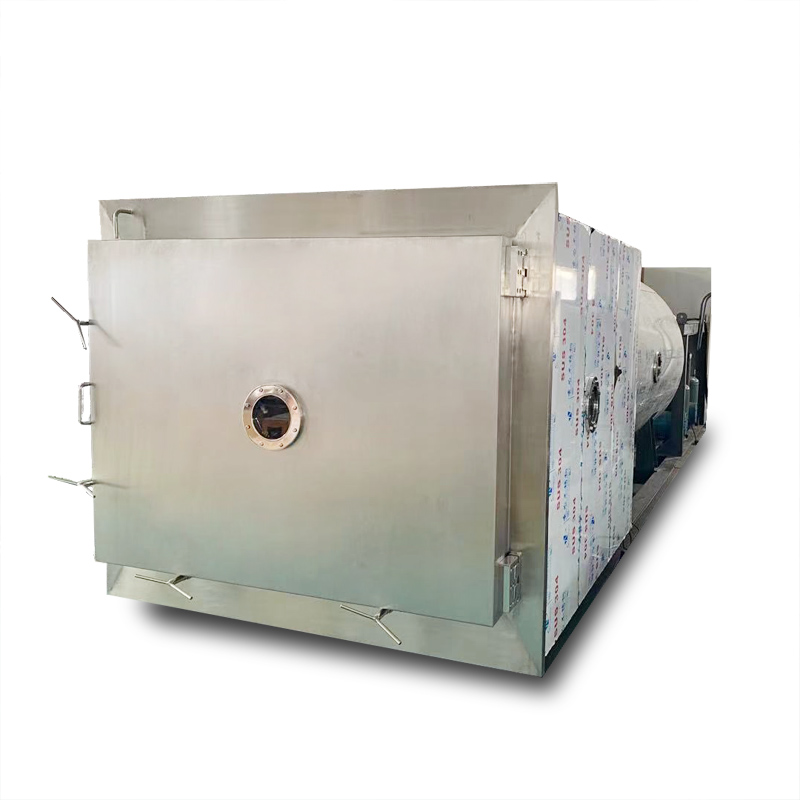

TF-LYO-40.0 真空冷凍干燥機
制造標準 Manufacture Standards | cGMP | ||
A、干燥箱（含41.m2板層） Chamber (with41.shelves) | |||
序號SN | 名稱 Name | 型號/規格/材質 Model/Specifications/Material | 數量 Number |
1 | 干燥箱 Chamber | AISI 304 不銹鋼 | 1套 |
2 | 板層 Shelves | AISI 304不銹鋼 | 1套 |
2000 × 14950× 20mm Dimensions：2000 × 1495× 20mm | +1層 | ||
3 | 箱門 Door | AISI 304 不銹鋼(部分) AISI 304 stainless steel (Section) | 1套 |
4 | 干燥箱視鏡 Viewing port (chamber) | DN-150 mm 帶延時照明燈 DN-150 mm With time delay head lamp | 1個 |
5 | 箱門視鏡 Viewing port (door) | DN-150 mm | 1個 |
6 | 驗證孔 Validation port | 1個 | |
7 | 手動門鎖系統 Door lock system with safe | 蝶形手柄設計 The butterfly handles | 1套 |
8 | 制品測溫探頭 Product sensors | Pt-100 熱電阻 A級 Pt-100 Hot resistance A Level | 3支 |
9 | 導熱油溫度探頭 Temperature sensors (thermal fluid) | Pt-100 熱電阻 A級 Pt-100 Hot resistance A Level | 2支 |
10 | 板層最低溫度(導熱油進口) Shelves temperature Min | -50℃ | |
11 | 板層最高溫度(導熱油進口) Shelves temperature Max | +80℃ | |
12 | 干燥箱外形 Chamber type | 長方型 Rectangular | |
13 | 盤管最低溫度 Coiled temperature Min | -70℃ | |
14 | 冷凝器捕冰能力 Condenser frosting capacity | 800Kg/批 800Kg/batch | |
15 | 冷凝器外型 Condenser type | Rectangular 長方形 | |
16 | 極限真空Final vacuum | 1.0Pa | |
17 | PLC | 日本OMRON | 1套 |
18 | 計算機 Computer | 聯想LENOVO | 1臺 |
19 | 總裝機功率 Electricity-total electrical load | 211kW (380V, 50Hz, 3Phase, 5Wire) | |
20 | Cooling water for refrigerant cooling 用于制冷系統的冷卻水 | 80m3/hr (1.5≤P≤2bar, T≤25°C) | |
21 | 外型尺寸 Dimension of unit | 9450*3200*4600 | |
22 | 整機重量 Weight of unit | 約28T (About )23T | |
23 | 凍干原料裝量（建議值） Capacity of raw material for freeze drying (suggestive value) | 最大800Kg/批 800kg/batch (Max) | |
以上數據僅供參考，以實際設計圖紙為準 | |||
